For Example,the following welding robot cost $17000 (RC13-10-W + Arsten Nova DR)

  • Support drag,can be quickly dragged to a large distance around the welding point
  • Uniquely designed end manipulator for fast programming without instruction:

    1 Use the rocker to operate the welding torch in six directions to the exact welding point;

    2Record the position point, movement mode, welding instruction and swing instruction directly on the end operator;

    3Fast speed adjustment; Welding and swing parameter adjustment;

    4The display displays key information, such as speed, pose, command, welding and swing parameters;

  • Welding gun can be quickly disassembled, only one screw can be quickly installed and disassembled,easy to move the machine to a small space;

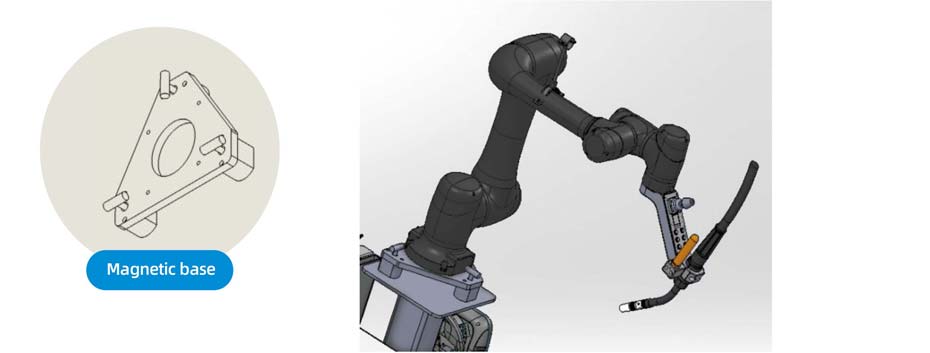

  • Optional magnetic base, can be installed on the workpiece;
  • Welding software package
  • Swing function

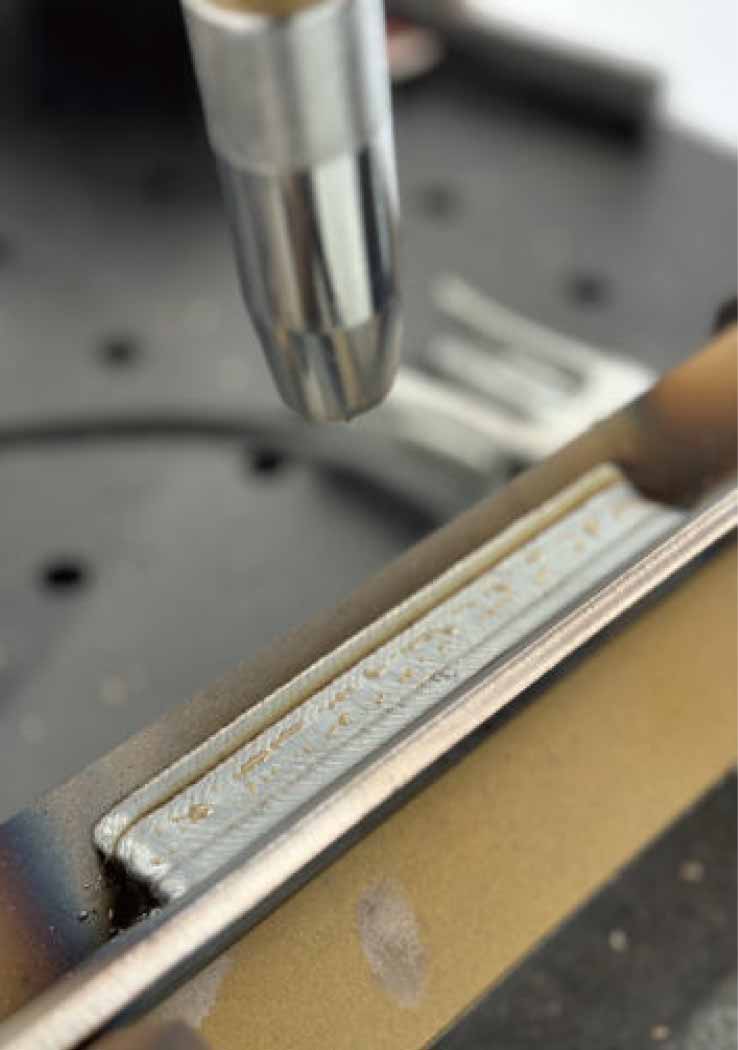

  • Multilayer multichannel function *
  • Location finding function *
  • Arc tracking function *

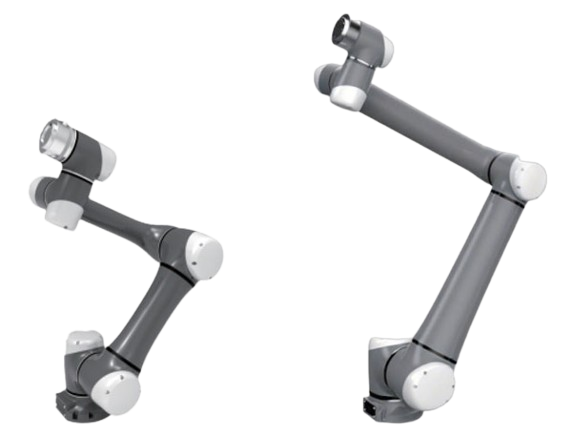

Apex Collaborative welding robot

Product features:

Fast speed, high precision, highly compact design,flexible installation, and human-machine collaboration.

The tool end speed is as high as mm/s, and the absolute positioning accuracy ±0.5mm

DNP-CR0905-GW DNP-CR1310-GW
Maximum working radius 906mm 1320mm
Load 5kg 10kg
Accuracy ±0.02mm ±0.03mm
Maximum speed 3000mm/s 3000mm/s
Control bus/frequency EtherCAT/1KHz EtherCAT/1KHz
Power rating 260W 260W
Temperature range -5-55℃ -5-55℃
Humidity 20%-80%RH 20%-80%RH
Installation method formal / inverted / wall formal / inverted / wall
Protection level IP58 IP58
Weight 22.5kg 37.8kg
Noise ≤60dB ≤60dB
Port I/O口 4 digital inputs and outputs 4 digital inputs and outputs
COM口 EntherNet/IP Adapter EntherNet/IP Adapter
Range of motion J1 -360°~360° -360°~360°
J2 -360°~360° -360°~360°
J3 -78°~256° -75°~255°
J4 -210°~210° -210°~210°
J5 -360°~360° -360°~360°
J6 -210°~210° -210°~210°
Maximum speed J1 225°/s 107°/s
J2 225°/s 107°/s
J3 225°/s 200°/s
J4 250°/s 250°/s
J5 250°/s 250°/s
J6 250°/s 250°/s

Set 1

CONFIGURATION
  • Name:Collaborative welding robot
  • Model:DNP-RC09-05-W DNP-RC13-10-W
Include

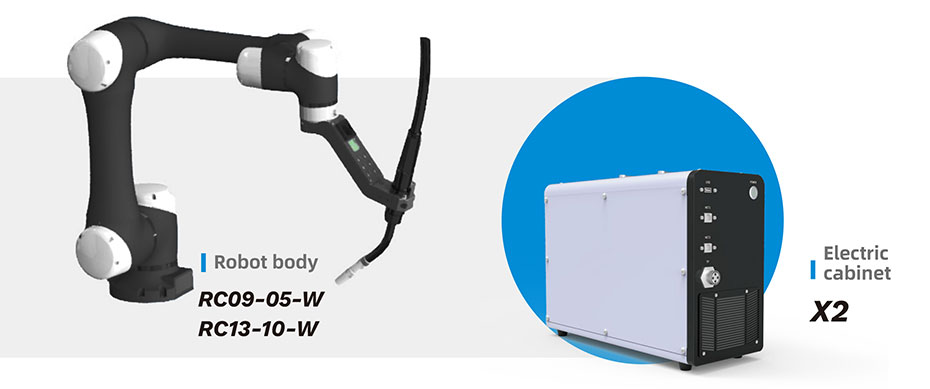

Robot body DNP-RC09-05-W/DNP-RC13-10-W

Electric cabinet X2

Towing device 1

Demonstrator Horizontal display, line length 6 meters

Other Electrical cabinet and body interconnection line 5 meters

Set 2

CONFIGURATION
  • Name:Collaborative welding robot
  • Model:DNP-RC09-05-W DNP-RC13-10-W
Include

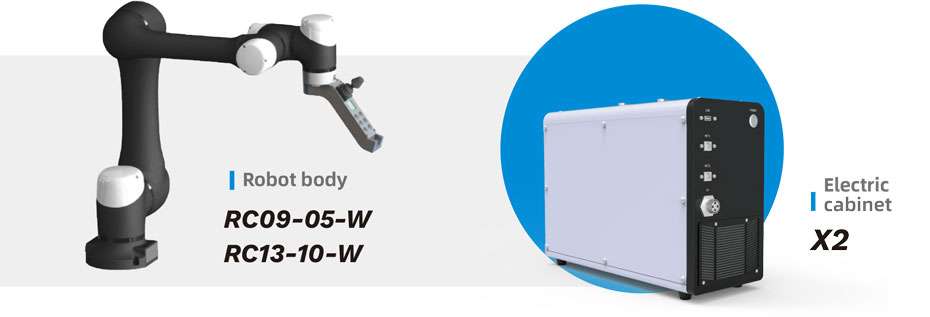

Robot body DNP-RC09-05-W/DNP-RC13-10-W

Electric cabinetX2

Towing device1

DemonstratorHorizontal display, line length 6 meters

OtherElectrical cabinet and body interconnection line 5 meters

Welding gunSelect 500A air-cooled /500A water-cooled options 3 meters/5 meters
Standard Japanese, optional European interface

Can be connected to a variety of welding machines (digital connection)

Set 3

CONFIGURATION
  • Name:Collaborative welding robot
  • Model:DNP-RC09-05-W DNP-RC13-10-W
Include

Robot body DNP-RC09-05-W/DNP-RC13-10-W

Electric cabinetX2

Towing device1

DemonstratorHorizontal display, line length 6 meters

OtherElectrical cabinet and body interconnection line 5 meters

Wire reelWire feed tube 1 m

Welding gunSelect 500A air-cooled /500A water-cooled options 3 meters/5 meters
Standard Japanese, optional European interface

Welding sourceArsten Nova 350DR;Ehave2 C m500R;Arsten Evo 500HPR
The wire feeder will automatically match the corresponding welder

Positive and negative welding cable

Set 4

CONFIGURATION
  • Name:Collaborative welding robot
  • Model:DNP-RC09-05-W DNP-RC13-10-W
Include

Robot body DNP-RC09-05-W/DNP-RC13-10-W

Electric cabinetX2

Towing device1

DemonstratorHorizontal display, line length 6 meters

OtherElectrical cabinet and body interconnection line 5 meters

Wire reelWire feeder bracket, wire tray andwire feeder tube installation bracketwire feeder tube, etc

Welding gunSelect 500A air-cooled /500A water-cooled options 3 meters/5 meters
Standard Japanese, optional European interface

Welding sourceArsten Nova 350DR;Ehave2 C m500R;Arsten Evo 500HPR
The wire feeder will automatically match the corresponding welder

Positive and negative welding cable

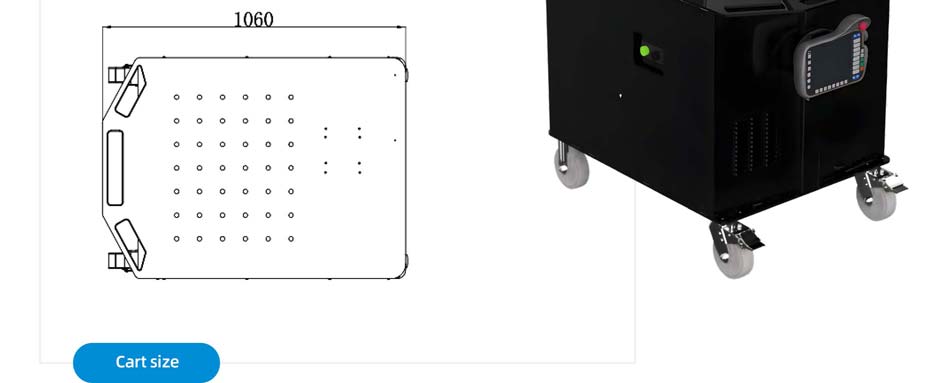

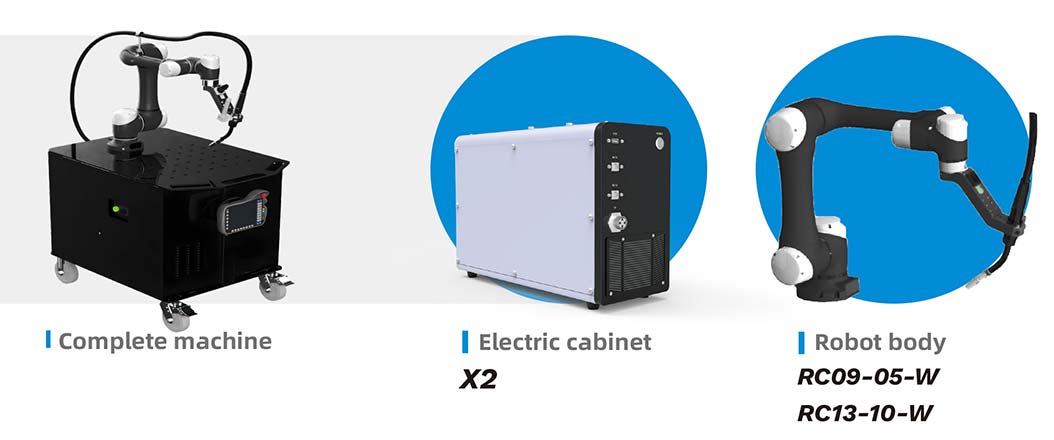

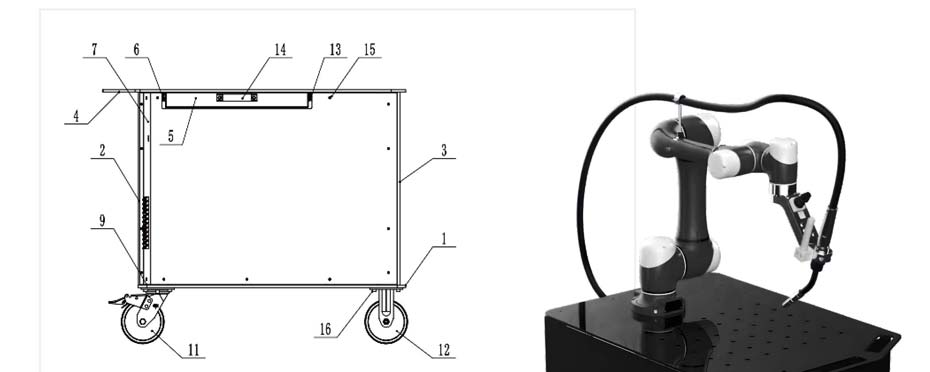

Cart with wheels

Collaborative welding robot

Welding Machine

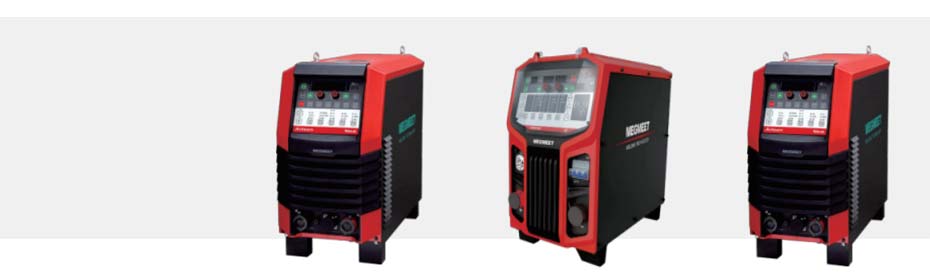

Parameter Arsten Nova 350DR Ehave2 Cm500R Arsten Evo 500HPR
Welding process
direct current direct current direct current
cold arc short-circuit transition carbon steel short arc pulse
smooth short-circuit transitions stainless steel constant melting depth
high-speed intermittent wedding simple TIG weleding solid core carbon steel
carbon steel MMA flux-cored carbon steel
stainless steel carbon arc gouging solid core stainless steel
constant melting depth quick soldering mode flux-cored non-carbon steel
Control mode full numbers full numbers full numbers
Input voltage 380V(±15%) 380V(±25%) 380V(±15%)
Input frequency 45~65Hz 50~60Hz 45~65Hz
Enter the capacity 175KVA/12.7KW 23.1KVA/21.7KW 24KVA/22.3KW
Input power factor 0.93 0.94 0.93
Rated output current 350A 500A 500A
Current range 30~350A 30~500A 30~500A
Voltage range 12~35.5V 12~45V 12~45V
Load rate 60%@350A 100%@500A 100%@500A
Insulation grade H F(voltage H) H
Protection level IP23S IP23S IP23S
Host environment -10℃~+40℃ -10℃~+40℃ -10℃~+40℃
Volume(L*W*H) 620 * 300 * 400mm 684 * 320 * 580mm 620 * 300 * 480mm
Weight 51.7kg 37kg 51.7kg

For picking/ placing we may choose from the following for around 6000USD
